Description
Download Product Brochure herehttps://www.erico.com/part.asp?part=SES200240DCM
FEATURES
- 200kA 8/20μs primary protection rated for service entrance applications
- Internal high interrupt capacity fusing for added safety
- Modular design allows easy replacement of surge modules
- Built-in disconnect and fusing eliminates need for external fusing
- Transient Discriminating (TD) Technology provides increased service life
- Includes surge counter and filtering
SPECIFICATIONS

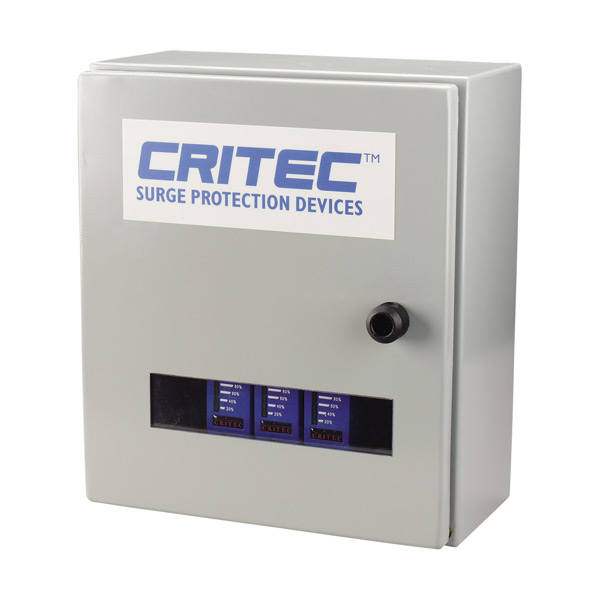

| Part Number | SES200240DCM |
| Nominal System Voltage (Un) | 220/240 V |
| Distribution System | 3PhΔ 3W+G |
| Max Continuous Operating Voltage (Uc) | 400 VAC |
| Stand-off Voltage | 275 V |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In) | 80 kA 8/20 μs |
| Max Discharge Current (Imax) | 100 kA 8/20 μs |
| Impulse Current (Iimp) | 20 kA 10/350 μs |
| Voltage Protection Rating (VPR) | 900 V @ 3 kA L-L 1,000 V @ 20 kA L-L |
| Aggregate Surge Rating | 200 kA 8/20 μs |
| Filtering | -40 dB @ 100 kHz |
| Max Operating Current | 25 mA |
| Protection Modes | All modes protected |
| Status Indication | 5 segment LED bar graph per phase Surge counter |
| Lead Size | 3 – 35 mm² |
| Temperature | -10 to 60 °C |
| Enclosure Material | Metal |
| Enclosure Rating | NEMA®-4 |
| Mounting | Wall mount |
| Depth | 190 mm |
| Height | 406 mm |
| Width | 355 mm |
| Unit Weight | 13 kg |
| Certification Details | UL® 1449 Edition 3 Type 1/2, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 μs, 10 kA 10/350 μs |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285669559 |
