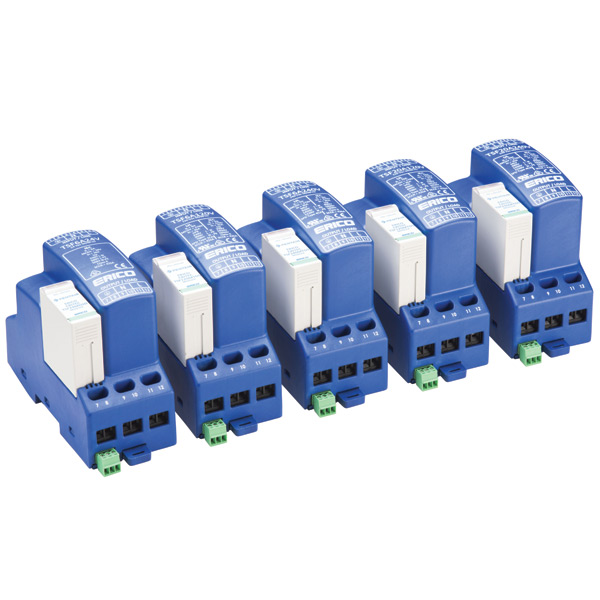

The nVent ERICO Critec Transient Surge Filter (TSF) product family is a UL registered, IEC compliant, compact, serviceable solution for protection of PLC controllers, SCADA systems, motor control centers and other process control systems.
FEATURES
- Compact, space saving design
- Replaceable surge module reduces down time and unprotected time during maintenance
- Compliance to the latest UL 1449 Edition 4 and IEC 61643-11 surge standards and UL 1283 Electromagnetic Interference Filters (EMI) standard
- Low let-through voltages on the critical line to neutral mode
- Transient Discriminating (TD) Technology provides increased service life
SPECIFICATIONS
| Part Number | TSF6A240V |
| Nominal System Voltage (Un) | 240 V |
| Rated Load Current (IL) | 6 A |
| Max Continuous Operating Voltage (Uc) | 275 V |
| Stand-off Voltage | 440 |
| Frequency | 0 – 100 Hz |
| Max Discharge Current (Imax), L-N | 20 kA 8/20 μs |
| Max Discharge Current (Imax), L-PE | 20 kA 8/20 μs |
| Max Discharge Current (Imax), N-PE | 20 kA 8/20 μs |
| Filtering | -65 dB @ 100 kHz |
| Distribution System | 1Ph 2W+G |
| Protection Modes | L-N L-PE N-PE |
| Connection, Solid | 2.00 – 5.25 mm² |
| Connection, Stranded | 2.00 – 5.25 mm² |
| Mounting | 35 mm top hat DIN rail |
| Status Indication | Mechanical flag Remote Contacts |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 |
| Temperature | -35 to 40 °C |
| Module Width | 3 M |
| Depth (D) | 95.2 mm |
| Height (H) | 122.7 mm |
| Width (W) | 54 mm |
| Unit Weight | 507 g |
| Replacement Module | TSF240MTDS |
| Certifications | CE, ERICO TSF cURus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285679980 |
| EAN-13 | 0782856799801 |
| UL 1449 Edition 4 / UL 1283 Edition 5 Ratings | |||||
| Part Number | TSF6A24V | TSF6A120V | TSF20A120V | TSF6A240V | TSF20A240V |
| Max Continuous Operating Voltage (Uc) | – | 170 V | 275 V | ||
| Rated Load Current (IL) | – | 6 A | 20 A | 6 A | 20 A |
| Nominal Discharge Current (In), L-N | – | 3 kA 8/20 μs | |||
| Nominal Discharge Current (In), L-PE | – | 3 kA 8/20 μs | |||
| Nominal Discharge Current (In), N-PE | – | 3 kA 8/20 μs | |||
| Voltage Protection Rating (VPR), L-N | – | 330 V | 400 V | – | – |
| Voltage Protection Rating (VPR), L-PE | – | 900 V | 800 V | – | – |
| Voltage Protection Rating (VPR), N-PE | – | 700 V | 700 V | – | – |
| Measured Limiting Voltage (MLV), L-N | – | – | – | 620 V | 680 V |
| Measured Limiting Voltage (MLV), L-PE | – | – | – | 1450 V | 1360 V |
| Measured Limiting Voltage (MLV), N-PE | – | – | – | 1220 V | 1330 V |
| Overcurrent Protection Fuse | – | Bussmann FNQ-R-7-1/2 |
Mersen ATMR25 |
Bussmann FNQ-R-7-1/2 |
Mersen ATMR25 |
| Certification Details | – | UL® 1449 Edition 4 Type 2CA, 3 kA Mode |
UL® 1449 Edition 4 Type 4CA, 3 kA Mode |
||
| UL® 1283 Edition 5 EMI Filter | |||||
| IEC 61643-11 Ratings | |||||
| Part Number | TSF6A24V | TSF6A120V | TSF20A120V | TSF6A240V | TSF20A240V |
| Max Continuous Operating Voltage (Uc) | 30 V | 170 V | 275 V | ||
| Rated Load Current (IL) | 6 A | 16 A | 6 A | 16 A | |
| Nominal Discharge Current (In), L-N | 3 kA 8/20 μs | ||||
| Nominal Discharge Current (In), L-PE | 3 kA 8/20 μs | ||||
| Nominal Discharge Current (In), N-PE | 3 kA 8/20 μs | ||||
| Voltage Protection Level (Up), L-N | 330 V | 330 V | 330 V | 800 V | 850 V |
| Voltage Protection Level (Up), L-PE | 500 V | 1050 V | 1050 V | 1800 V | 1900 V |
| Voltage Protection Level (Up), N-PE | 500 V | 1050 V | 1050 V | 1800 V | 1900 V |
| Overcurrent Protection Circuit Breaker | Clipsal 4CB106/10 |
Clipsal 4CB116/10 |
Clipsal 4CB106/10 |
Clipsal 4CB116/10 |
|
| Complies With | IEC® 61643-11 Class II | ||||
