Description
Download Product Brochure herehttps://www.erico.com/part.asp?part=UTB30DPS
FEATURES

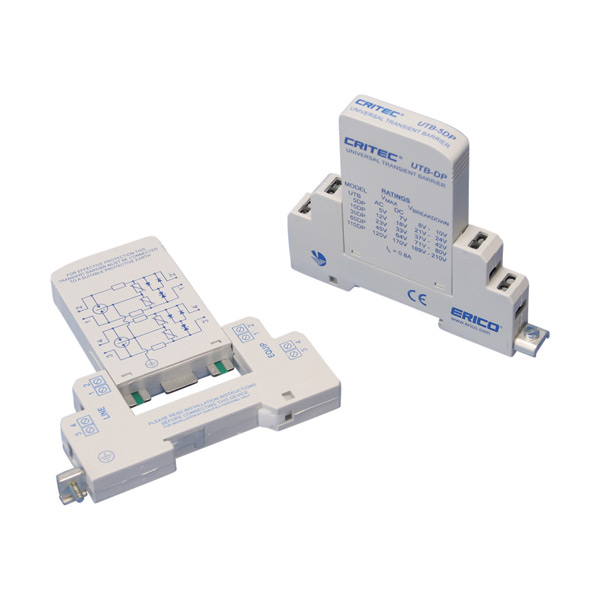

- Compact design universal transient barrier provides protection of low-voltage circuits and transducers
- Separate plug and base design allows hot swappable module replacement
- Multi-stage protection and fine over-voltage protection helps ensure lowest residual surge voltages reach sensitive equipment
- Common-mode and differential-mode protection protects against both possible surge conditions
- Designed for compact protection of signal and power supply in one compact housing
SPECIFICATIONS
| Part Number | UTB30DPS |
| Article Number | 702892 |
| Nominal System Voltage (Un) | 24 – 48 VAC 12 – 60 VDC |
| Max Continuous Operating Voltage (Uc) | 48 VAC 60 VDC |
| Rated Load Current (IL) | 5 A |
| Frequency | 0 – 60 Hz |
| Loop Resistance | 0 Ω |
| Max Discharge Current (Imax), Per Mode | 15 kA 8/20 μs |
| Protection Modes | Common Differential |
| Technology | Gas Discharge Tube (GDT) Metal Oxide Varistor (MOV) Silicon Avalanche Diode (SAD) |
| Voltage Protection Level (Up), L-L | 220 V @ 3 kA |
| Connection, Stranded | 1 – 4 mm² |
| Mounting | 35 mm top hat DIN rail |
| Temperature | -20 to 65 °C |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 NEMA®-1 |
| Depth (D) | 85 mm |
| Height (H) | 90 mm |
| Width (W) | 12 mm |
| Unit Weight | 0.09 kg |
| Certification Details | UL® 497B |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Replacement Module | UTB30DPSM |
| Certifications | CE UR |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662222 |
| EAN-13 | 8711893097429 |
The electrical specifications shown are specific to the power supply (PS) circuit of the product.
