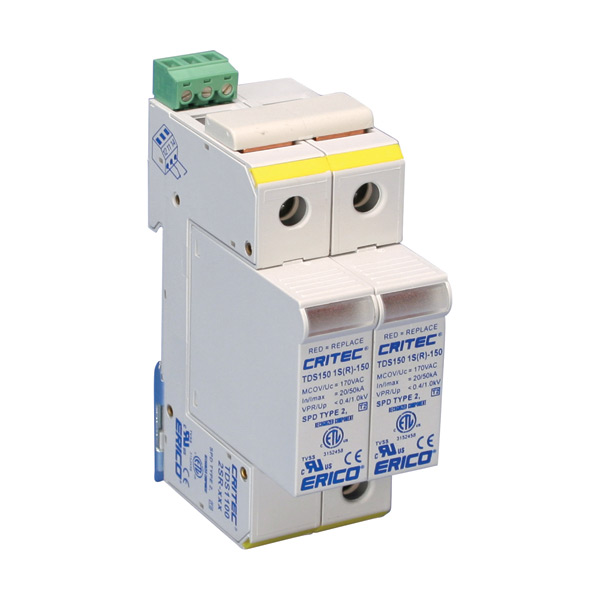

Description
Download Product Brochure herehttps://www.erico.com/part.asp?part=TDS11002SR277
FEATURES
- TD Technology with thermal disconnect protection
- Compact design fits into DIN distribution panel boards and motor control centers
- Indication flags and voltage-free contacts provide remote status monitoring
- Separate plug and base design facilitates replacement of a failed surge module
- 100kA 8/20μs maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
SPECIFICATIONS
| Part Number | TDS11002SR277 |
| Article Number | 702412 |
| Nominal System Voltage (Un) | 220 – 277 VAC |
| Max Continuous Operating Voltage (Uc) | 320 VAC |
| Stand-off Voltage | 480 VAC |
| Voltage Protection Rating (VPR) | 1,000 V @ 3 kA 1,600 V @ 20 kA |
| Nominal Discharge Current (In) | 40 kA 8/20 μs |
| Max Discharge Current (Imax) | 100 kA 8/20 μs |
| Impulse Current (Iimp) | 12.5 kA 10/350 μs |
| Back-Up Overcurrent Protection | 125 A |
| Response Time | 5 ns Max |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Frequency | 0 – 100 Hz |
| Protection Modes | L-N L-PE N-PE |
| Technology | TD technology with thermal disconnect |
| Connection, Solid | 35 mm² Max |
| Connection, Stranded | 25 mm² Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 NEMA®-1 |
| Remote Contacts | Yes |
| Status Indication | Mechanical flag |
| Temperature | -40 to 80 °C |
| Module Width | 2 M |
| Depth (D) | 68 mm |
| Height (H) | 90 mm |
| Width (W) | 35 mm |
| Unit Weight | 0.24 kg |
| Certification Details | UL® 1449 Edition 4 Type 4CA, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 μs, 10 kA 10/350 μs IEC® 61643-1 Class I, Class II |
| Replacement Module | TDS150M277 |
| Certifications | CE cURus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285658537 |
| EAN-13 | 8711893046250 |
