Description
Download Product Brochure here https://www.erico.com/part.asp?part=DFM20A
FEATURES
- Secondary surge protection and filtering
- DIN rail mount provides simple installation
SPECIFICATIONS

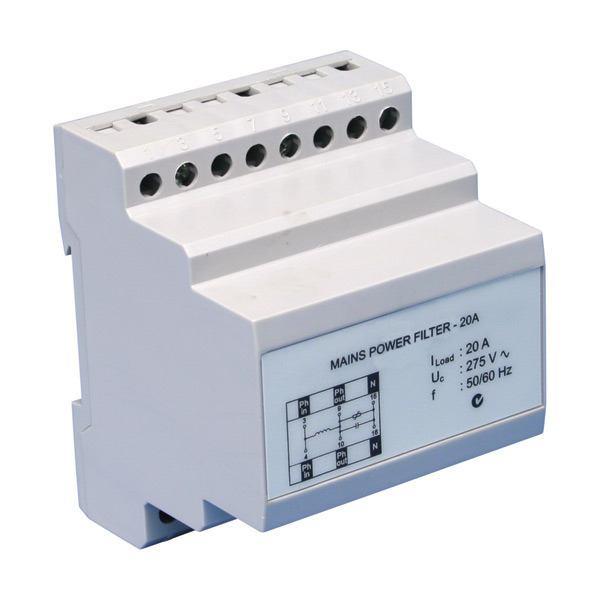

| Part Number | DFM20A |
| Rated Load Current (IL) | 20 A |
| Max Continuous Operating Voltage (Uc) | 275 VAC |
| Frequency | 50 – 60 Hz |
| Connection, Solid | 1 – 6 mm² |
| Connection, Stranded | 1 – 6 mm² |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 NEMA®-1 |
| Mounting | 35 mm top hat DIN rail |
| Module Width | 4 M |
| Temperature | -35 to 55 °C |
| Unit Weight | 1.57 kg |
| Depth (D) | 68 mm |
| Height (H) | 90 mm |
| Width (W) | 72 mm |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285667958 |
