Description
Click here for product brochure
FEATURES

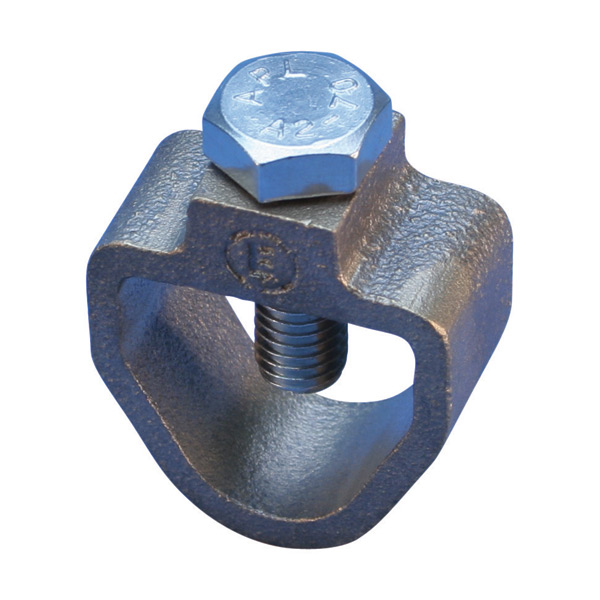

- Mechanical rod to tape clamp allows the conductor to be disconnected from the earthing system
SPECIFICATIONS
| Part Number | RTC2051 |
| Article Number | 710350 |
| Material | Stainless Steel 304 (EN 1.4301) Gunmetal |
| Thread Size (TS) | M10 |
| Complies With | IEC® EN 62561-1 |
| Standard Packaging Quantity | 10 pc |
| UPC | 78285687934 |
| EAN-13 | 8711893020182 |
| Ground Rod Diameter, Actual | Tape Size | ||||
| 25 x 3 mm | 30 x 2 mm | 30 x 6 mm | 40 x 4 mm | 50 x 3 mm | |
| 14.2 mm | RTC1626 RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2051 | RTC2051 |
| 15.8 mm | RTC1626 RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2051 | RTC2051 |
| 17.3 mm | RTC1626 RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2051 | RTC2051 |
| 19.1 mm | RTC1626 RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2030 RTC2051 |
RTC2051 | RTC2051 |
| 25.4 mm | RTC2051 | RTC2051 | – | – | RTC2051 |
