Description

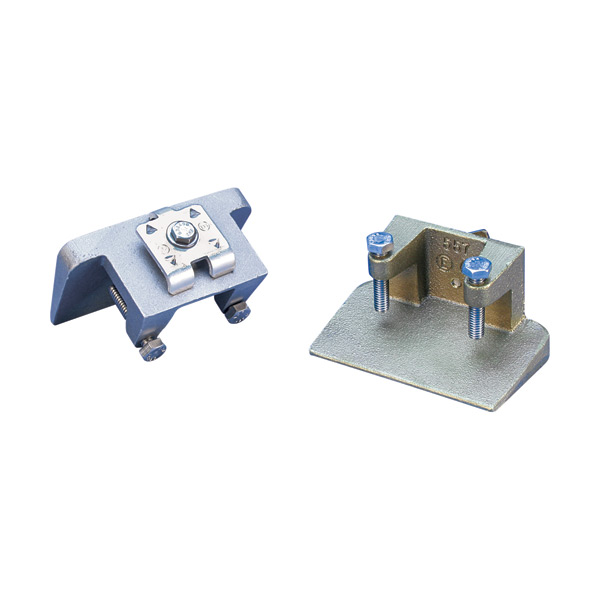

Click here to download product brochure http://Beam Bonding Clamp, Cu, 1″ beam thickness
FEATURES
- Clamp for bonding cable to flat metal objects such as I-beams, angle irons and channel irons
- Listed to UL® 96
SPECIFICATIONS
| Part Number | LPC557L |
| Conductor Size, UL | Class 1 – Class 2 (4/0 Max) |
| Material | Copper |
| Finish | Tinned |
| Flange Thickness (FT) | 25.4 mm Max |
| Depth (D) | 69.85 mm |
| Height (H) | 50.8 mm |
| Width (W) | 101.6 mm |
| Contact Area | 51.613 mm² Min |
| Unit Weight | 0.932 kg |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285644867 |
| EAN-13 | 8711893060188 |
