Description
Click here to download product brochure https://www.erico.com/part.asp?part=LPA513
FEATURES

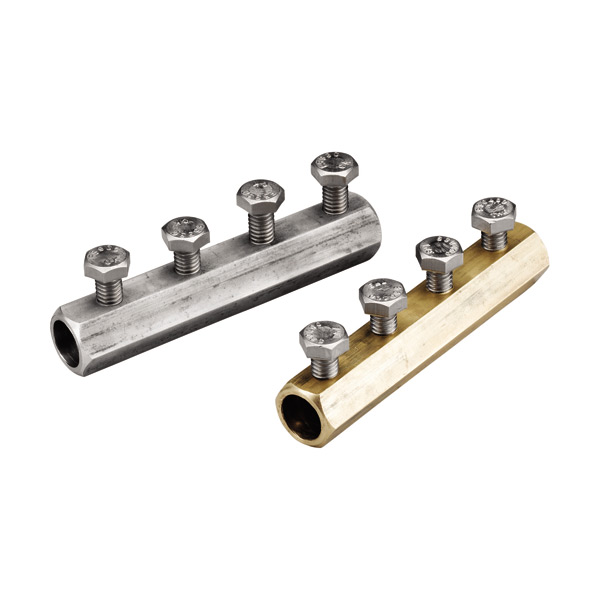

- Cable splicer with four bolts for pressure on each cable
- LPC513 is compatible with nVent ERICO Cu-Bond Round Conductors
SPECIFICATIONS
| Part Number | LPA513 |
| Conductor Size, UL | Class 1 – Class 2 (4/0 Max) |
| Material | Aluminum |
| Diameter 1 (Ø1) | 19.1 mm |
| Diameter 2 (Ø2) | 14.3 mm |
| Width (W) | 82.55 mm |
| Unit Weight | 0.086 kg |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285642446 |
| EAN-13 | 8711893059007 |
IEC compliance is valid only for nVent ERICO Cu-Bond Conductors listed.
