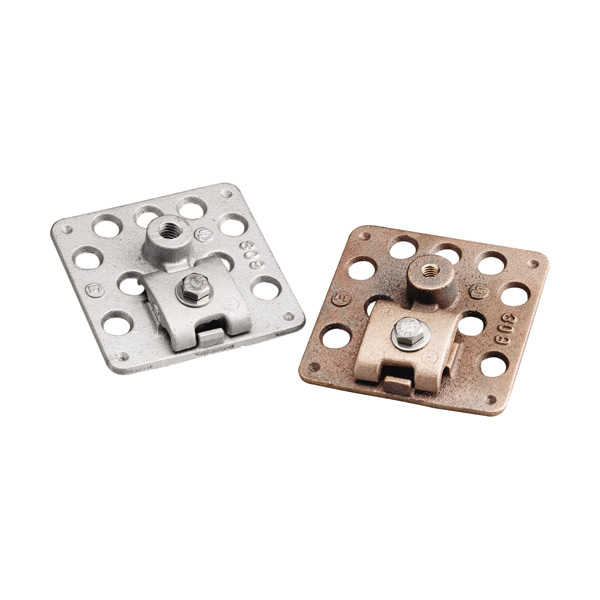

Description
Download Product Brochure here https://www.erico.com/part.asp?part=LPA30958
FEATURES
- Can be fastened mechanically or bonded using hot pitch, roofing compound or commercial adhesive on built-up roof surfaces or other location where holes cannot be made
- Positive single bolt tension for multi-directional cable clamping
SPECIFICATIONS
| Part Number | LPA30958 |
| Conductor Size, UL | Class 1 – Class 2 (4/0 Max) |
| Material | Aluminum |
| Thread Size (TS) | 5/8 UNC |
| Hole Size (HS) | 7.94 mm |
| Depth (D) | 101.6 mm |
| Height (H) | 20.64 mm |
| Width (W) | 101.6 mm |
| Unit Weight | 0.141 kg |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285642369 |
| EAN-13 | 8711893058963 |
