Description
Download Product Brochure here https://www.erico.com/part.asp?part=KITCDMV01
FEATURES
- Versatile mold produces a variety of connections
- Patented, self-sealing system prevents weld metal leakage
- Compact compression structure enables easy alignment of conductors
- Language-free instruction guide
- Easy-to-use system completes welds in seconds
SPECIFICATIONS
| Part Number | KITCDMV01 |
| Article Number | 167782 |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285661294 |
| EAN-13 | 8711893048612 |
| Types of ERICO CADWELD MULTI Multiple Connectors | |||||||
| Mold Style | Number of Battings Required | Maximum Conductor Size | Maximum Bus/Lug Size | Maximum Rebar Size, Metric | Maximum Rebar Size, US | Ground Rod Diameter, Nominal | Ground Rod Diameter, Actual |
| Solid or Stranded Copper Cable to Solid or Stranded Copper Cable | |||||||
| SS | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| SC | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| PA | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| PA | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| XA | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| GG | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| GJ | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| GF | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| GW | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| XB | 3 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| PP | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| PK | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| GE | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| PG | 2 | 50 mm² Str; 1/0 Str | – | – | – | – | – |
| TD | 2 | 25 mm² Str; #4 Str | – | – | – | – | – |
| TE | 2 | 25 mm² Str; #4 Str | – | – | – | – | – |
| TF | 2 | 25 mm² Str; #4 Str | – | – | – | – | – |
| Solid or Stranded Copper Cable to Rebar | |||||||
| RG | 2 | 50 mm² Str; 1/0 Str | – | 10 mm | #3 | – | – |
| RH | 2 | 50 mm² Str; 1/0 Str | – | 10 mm | #3 | – | – |
| RK | 2 | 50 mm² Str; 1/0 Str | – | 10 mm | #3 | – | – |
| RD | 3 | 50 mm² Str; 1/0 Str | – | 10 mm | #3 | – | – |
| Copper or Steel Tape to Rebar | |||||||
| RF | 2 | – | 30 x 3.5 mm | 10 mm | #3 | – | – |
| Copper Tape to Copper Tape | |||||||
| BB | 2 | – | 30 x 3.5 mm | – | – | – | – |
| CG | 3 | – | 30 x 3.5 mm | – | – | – | – |
| BG | 3 | – | 30 x 3 mm | – | – | – | – |
| EB | 3 | – | 30 x 3 mm | – | – | – | – |
| Solid or Stranded Copper Cable to Copper or Steel Bus/Lug | |||||||
| HA | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| HC | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| HS | 3 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| HT | 3 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| GL | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| LA | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| LJ | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| LE | 2 | 50 mm² Str; 1/0 Str | 30 x 3.5 mm | – | – | – | – |
| Galvanized Steel Tape to Galvanized Steel Tape | |||||||
| BB | 2 | – | 30 x 3 mm | – | – | – | – |
| CG | 3 | – | 30 x 3 mm | – | – | – | – |
| Solid or Stranded Copper Cable to Ground Rods | |||||||
| TG | 2 | 10mm² Str; #6 Str | – | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| GT | 2 | 10mm² Str; #6 Str | – | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| GR | 2 | 10mm² Str; #6 Str | – | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| GT | 3 | 10mm² Str; #6 Str | – | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| GR | 3 | 10mm² Str; #6 Str | – | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| Copper Tape to Ground Rod | |||||||
| CN | 2 | – | 30 x 3.5 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| CP | 2 | – | 30 x 3.5 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| CN | 3 | – | 30 x 2.5 mm – 30 x 3 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| CP | 3 | – | 30 x 2.5 mm – 30 x 3 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| Galvanized Steel Tape to Ground Rod | |||||||
| CN | 3 | – | 30 x 0.5 mm – 30 x 3.5 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |
| CP | 3 | – | 30 x 0.5 mm – 30 x 3.5 mm | – | – | 1/2″ – 3/4″ | 12.8 – 17.3 mm |

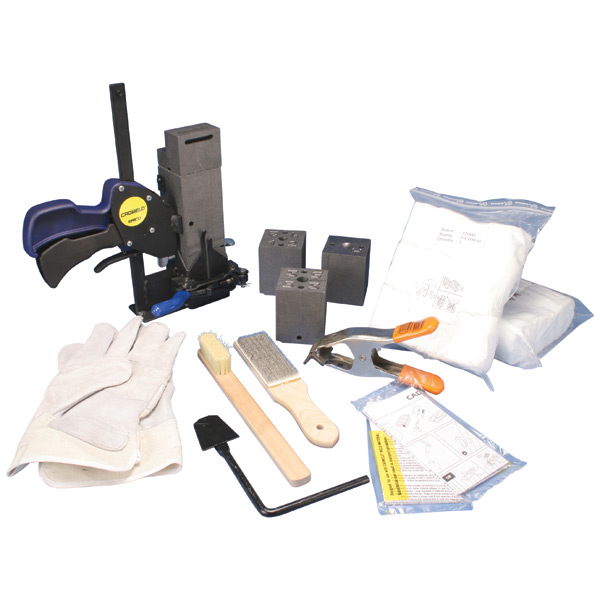

INCLUDED IN THIS KIT
| Part Number | Article Number | Description | Quantity |
| B136B | 182130 | Mold Cleaner, Most nVent ERICO Cadweld molds using #90 welding material and larger | 1 |
| B399P | 162070 | Spring Clamp | 1 |
| CDMV01 | nVent ERICO Cadweld Multi Mold for Vertical and Horizontal Applications | 1 | |
| FMCDMV01 | 120883 | nVent ERICO Cadweld Multi Clamping Assembly | 1 |
| SCDM01 | 120886 | nVent ERICO Cadweld Multi Batting Material | 2 |
| T401PLUS | 546900 | nVent ERICO Cadweld Multi Tool Box | 1 |
| TSCSTP | 197295 | nVent ERICO Cadweld Conductor and Mold Cleaning Kit | 1 |
